GF 002 Filter Knitted Wire Mesh
Name: Filter knitted wire mesh,gas liquid wire mesh
Material: stainless steel wire AISI201, 202, 301, 302, 304, 304L, 321, 316, 316 L, galvanized wire, redrawing wire, brass wire, copper wire, titanium wire, alloy wire, nickel wire,fiberglass wire, nylon wire, PE wire, Nichrome wire.
Wire diameter: 0.08 ~ 0.55mm flat wire or round wire.
Hole size: 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.

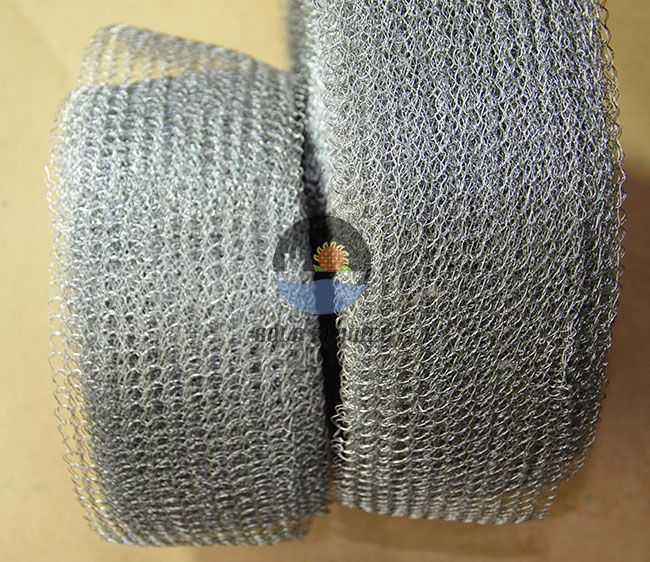

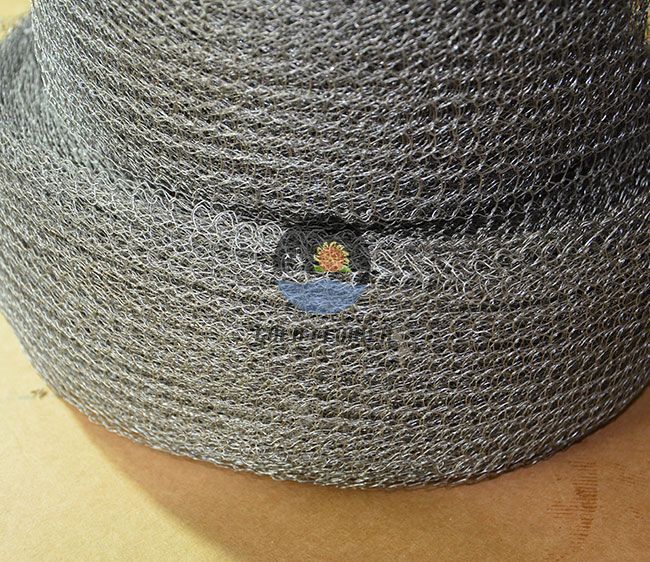

Knitted wire mesh is distinctly different from other metallic woven materials such as fly screen or hex mesh. The unique mechanical qualities of Metal Textiles knitted wire—made possible by a unique fabrication process which yields a mesh of interlocking loops that allow two-way stretch—create an extremely robust yet flexible product. Unlike other woven products made of wire metal, the loops in Metal Textiles knitted wire move relative to each other in the same plane without distortion.
This mechanical feature makes knitted wire an ideal material for covering insulation media, since its flexibility facilitates handling. Its flexibility also permits easier fitting around irregular curves and complex shapes.
Application
· Oil-gas separation
· Air purification filters of various machinery and equipment
· Sealing
· Damping( shocking proof)
· Silencers and exhaust gas purification components of auto parts
· Electronics and electrical products EMI shielding devices
