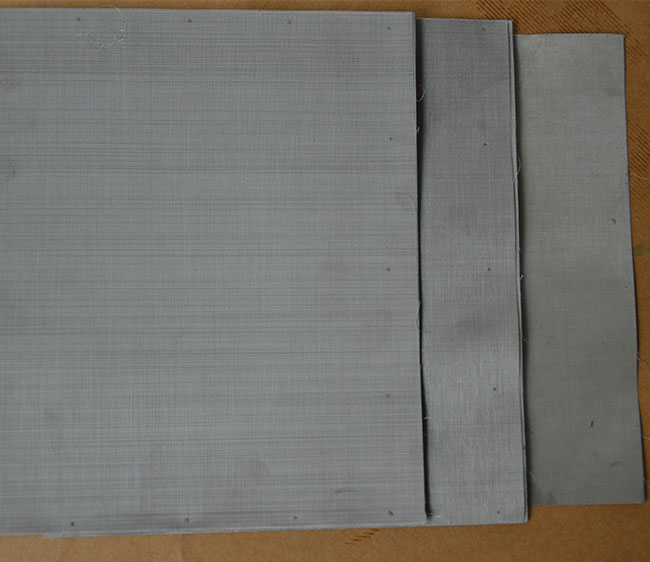

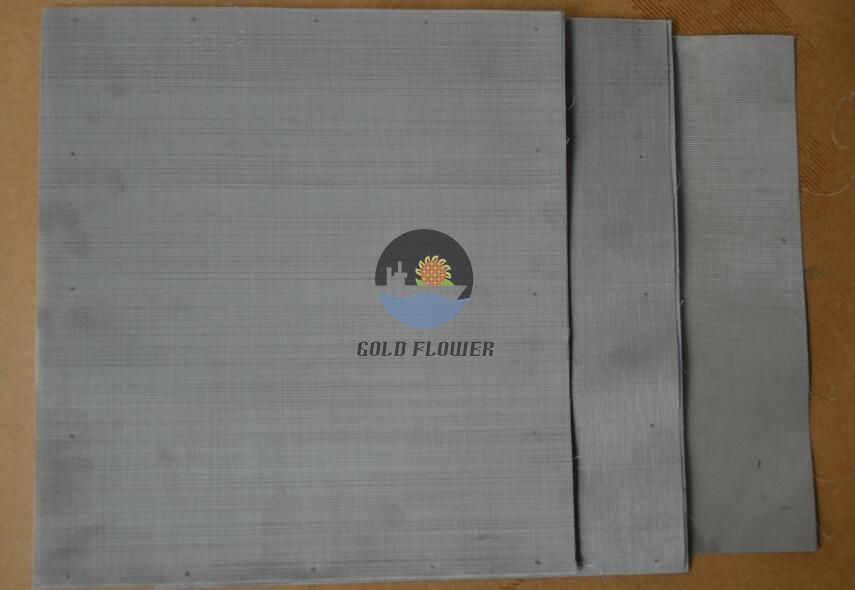

Sintered Mesh

Characteristics

a. Complex structure, high filtering precision
b. Large dirt holding capacity, long service life time
c. Good corrosion resistance and pressure resistance
d. Increased flow quantity per unit area
e. woven type stainless steel mesh, with homogeneous pore distribution, high strength, and easy to clean.

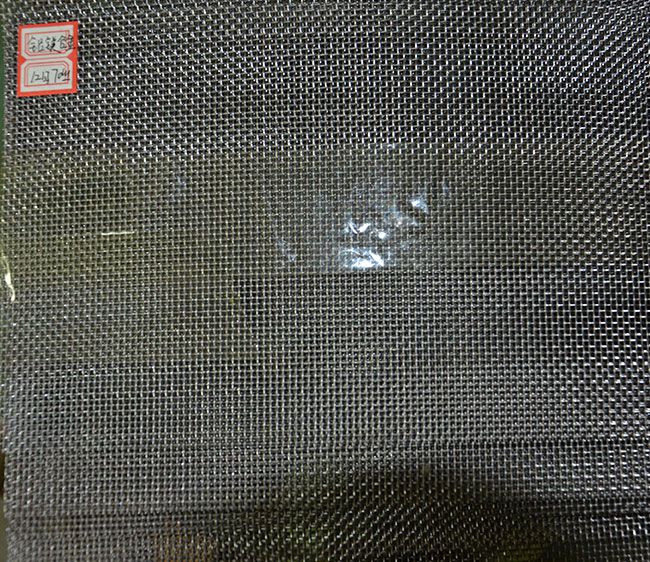

Plain weave

Each warp wire and each weft wire passes over and under the next adjacent wire.

Plain dutch weave woven wire cloth has two sizes of wire diameter. The weft wires has thinner wire diameter, which is woven tightly together to provide a tight mesh for filtering. The warp wires has coarser wire diameter, which provides strength to the woven wire cloth.

Twill dutch weave

It is the extension of the twill weave. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, which is similar as twill weave. The wire diameter of warp wire is larger than weft wire. The mesh count in the weft direction is greater than the warp direction. Dutch twill weave enables the weft wires to be woven more densely and much smaller aperture sizes can be achieved.

Reverse dutch weave woven wire cloth

Reverse dutch weave woven wire cloth has finer wire diameter in warp wire and coarser wire diameter in weft wire. and the mesh count in the warp wire is larger than the weft wire.

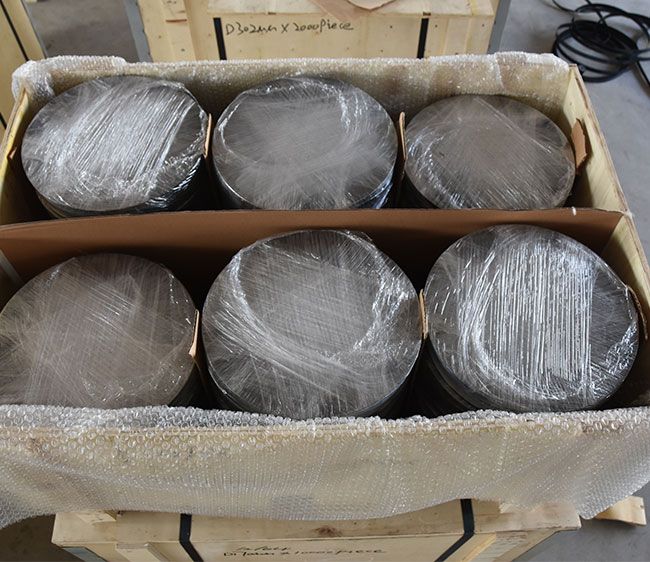

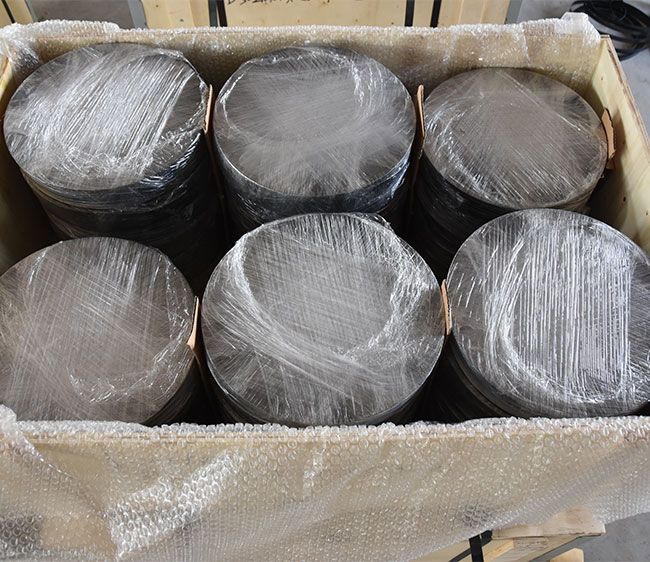

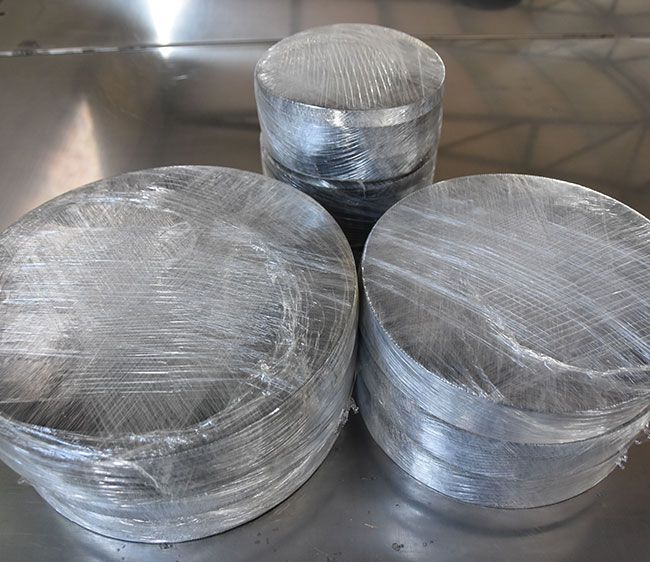

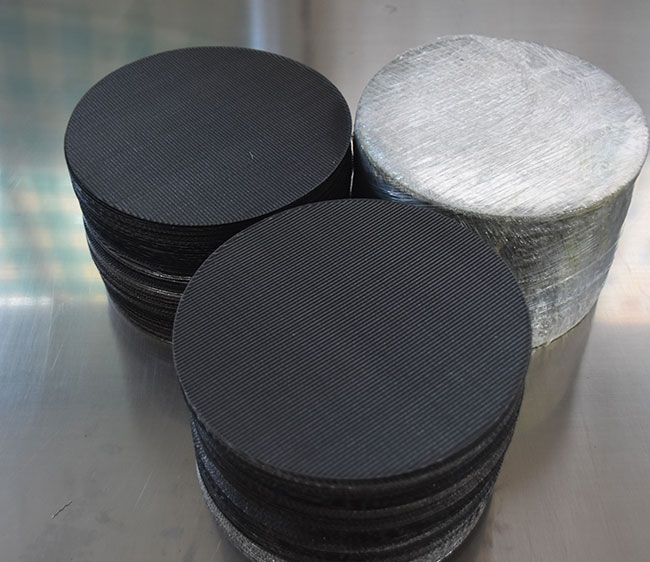

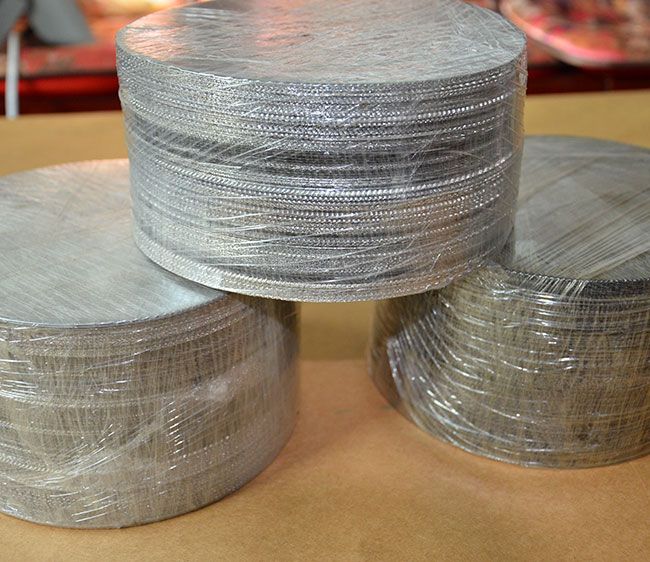

Filter disc shape

Rectangle, Square, Round, oval, circular, cap, waist and abnormity etc.

Woven type

Plain wave,twill weave and dutch weave.

Structure

Single layer, double layer and multi-layers.

Edge material

Stainless Steel Sheet, copper sheet, galvanized sheet, aluminum sheet, low carbon iron sheet, rubber and plastic etc.

Application

suitable for distillation, absorption and evaporation in petroleum, oil refining, chemical industry, light industry, medicine, metallurgy, machinery, ship, automobile and tractor industries.Filter and other processes to eliminate entrainment in the steam or gas droplets and foam, as well as the car tractor used as an air filter.
