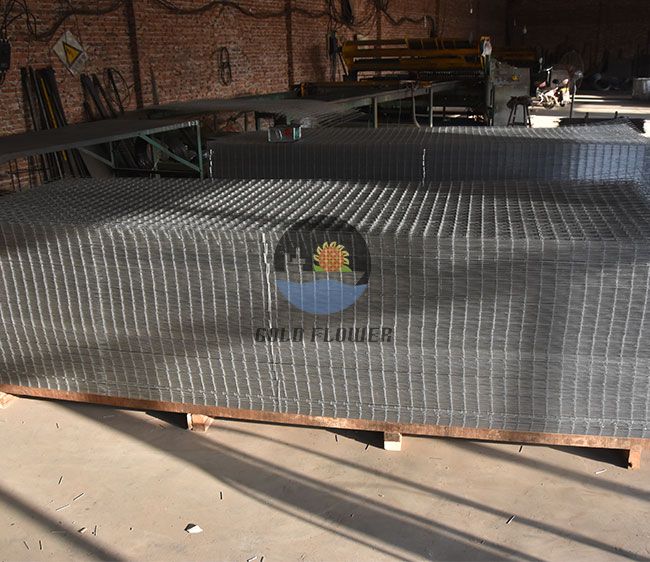

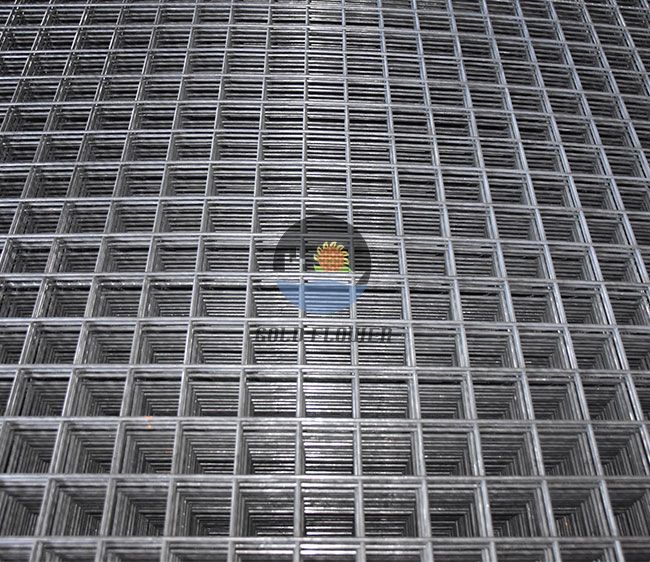

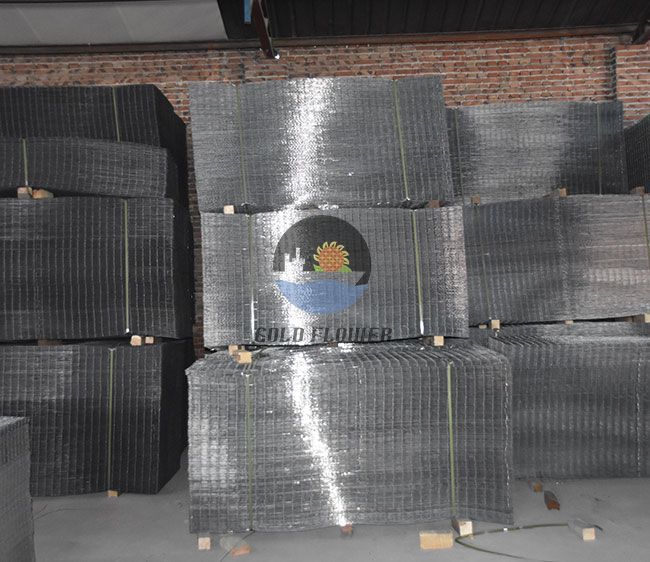

Stainless steel welded wire mesh panel

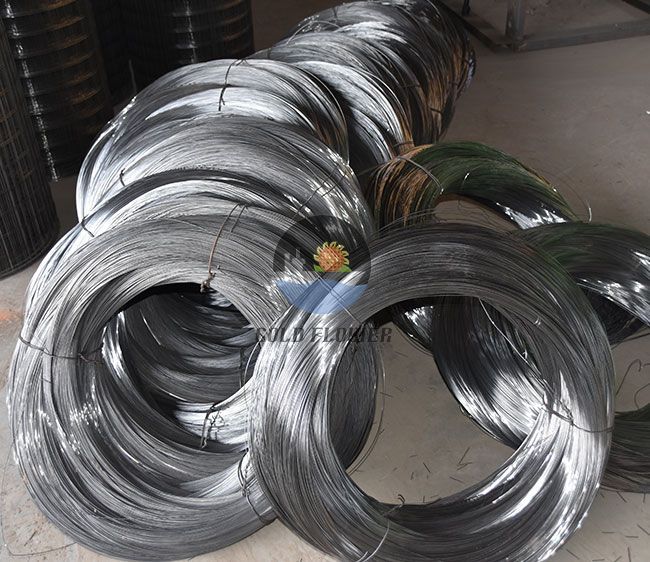

Material:stainless steel wire,cold wire drawing , electro-galvanized wire ,hot-dip galvanized wire, and ect.

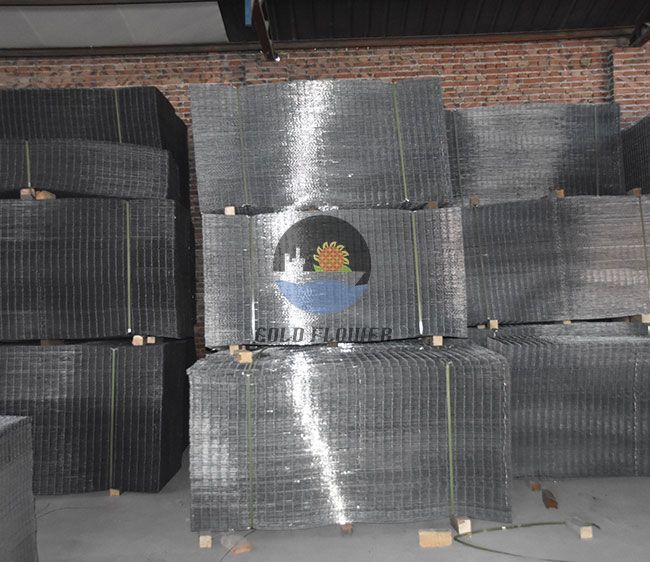

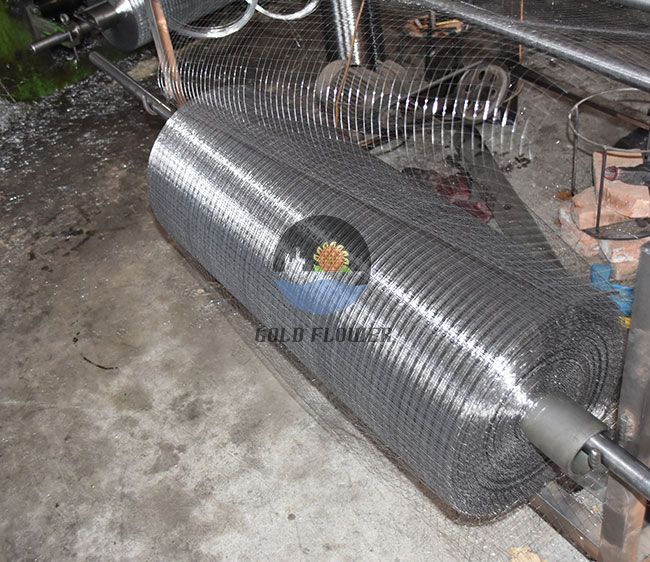

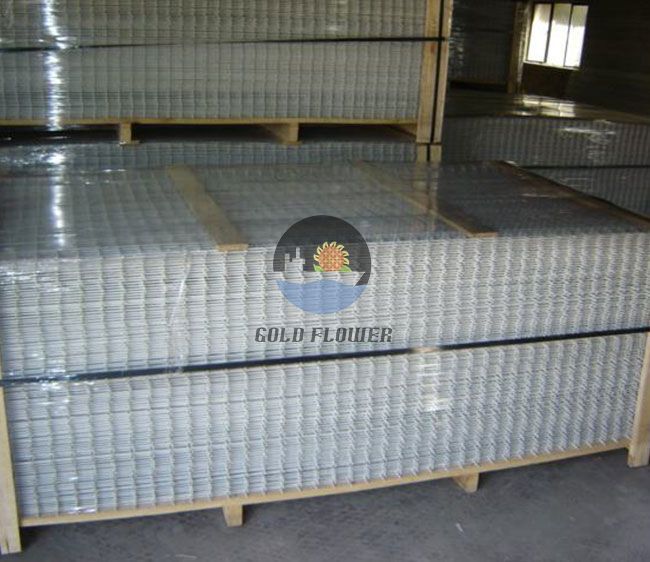

Package:in rolls,then in water-proof paper and in plastic bag or by requirment.
Shape:round or square.
Application:Used in fence for highway,railway,and in industry, agriculture, building, transportation, mine, field, and etc.

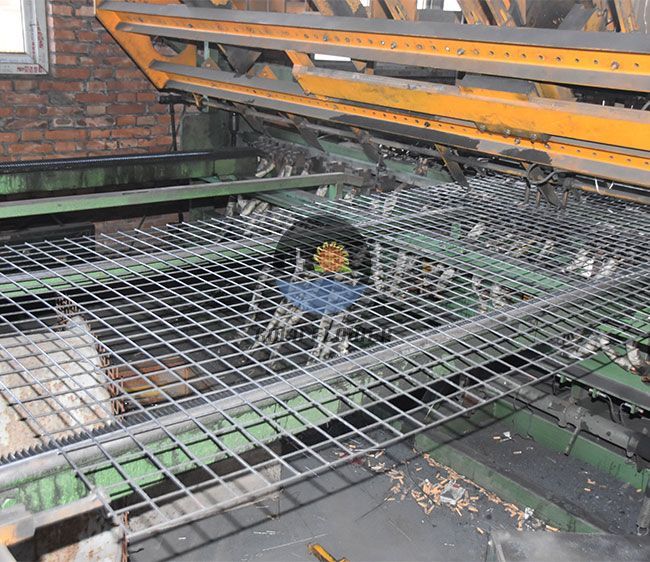

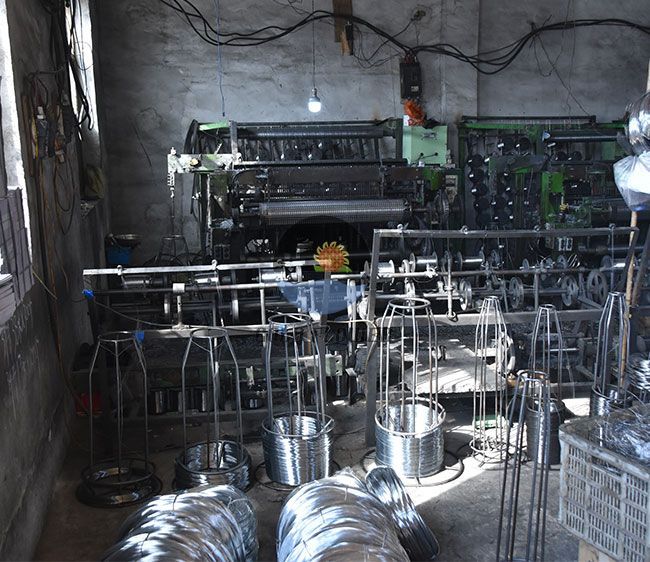

Welded wire panel is made of high quality steel wire through automatic process and sophisticated welding technique, laid
horizontally and vertically. The finished products is strong welding, insistence and flat with sturdy structure.
Application:
1. Concrete footpaths
2. Precast Panel construction
3. Construction reinforcement
4. Residential slabs and footings
5. Industrial and commercial ground slabs
6. The ground for tunnel, bridge, highway, airport and wharf, also in construction of wall body.
| Specification List |
| Opining | Wire Diameter |
| Inch | mm | BWG | mm |
| 1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
| 2"x1" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm |
| 3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm |
| 4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm |
| 4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm |
| 5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm |
| 6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
