There are three types of dutch weave: plain Dutch weave, twill Dutch weave and reverse Dutch weave. They each have their own characteristics and can be used for different applications. However, regardless of the type of preparation, Dutch woven wire mesh has a zero pore size and provides excellent filtration performance.

Dutch woven wire mesh is made of stainless steel wire. The warp is generally a thicker wire, which provides the screen with higher tensile strength. The weft wire is a finer wire, which ensures excellent filtration performance. This unique structure with greater strength and finer pores is mainly used as a filter cloth.

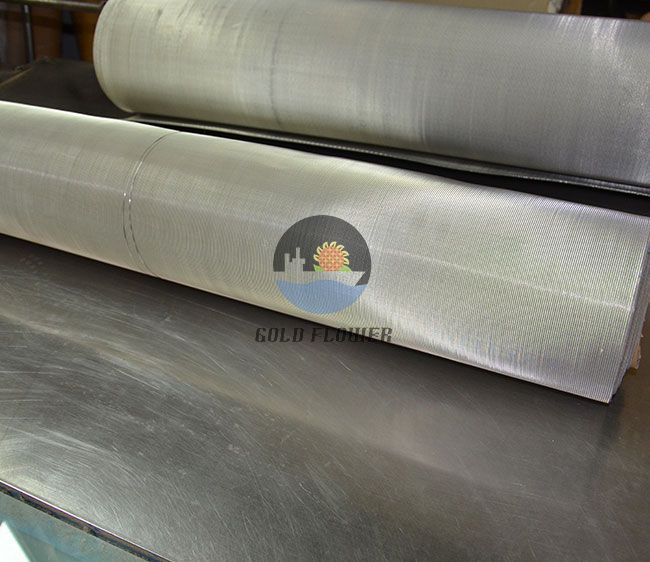

Dutch Weave Wire Mesh

Types of Dutch woven wire mesh

Plain Dutch woven wire fabric

Plain Dutch weave is a combination of Dutch weave and plain weave. It is available in two wire sizes. Each thick wire diameter warp thread is alternately passed above and below one weft thread to provide high tensile strength to the net. The fine wire diameter weft threads pass alternately above and below one warp thread, creating a fine hole for filtration.

Plain Dutch woven wire cloth is primarily used for filtering and separating liquid and slurry products.

Twill Dutch Woven Wire Mesh

Twill woven wire mesh is a combination of dense and twill weave. The weft threads are alternately passed above and below the two warp threads to form a finer mesh in the warp threads, and the warp threads form a thicker mesh in the warp direction in the same weave.

Twill dense weave mesh can withstand greater loads because of the finer openings. It is used to filter heavy materials.

Reverse Dutch Woven Wire Mesh

Reverse Dutch woven wire is another product specifically designed for filtration. Unlike Dutch woven wire, reverse Dutch weave is also available for brass wire and has chemical stability for filtration. Using two different sizes of wire diameter, a stainless steel wire or brass wire is woven into anti-Holland weave wire mesh.

Reverse Dutch woven wire mesh is widely used for filter discs or other filtration products in petrochemical, aerospace, and other fields.

Applications of Dutch woven wire mesh

Dutch woven wire mesh is primarily used for filtration. It provides excellent filtration capabilities for a wide range of applications. Examples include the aerospace, pharmaceutical, petrochemical, wastewater, and mining industries.

Are you looking for wire cloth for your industry? If so, then you've come to the right place. You can always browse our online inventory for information and contact us with questions at any time.
