Stainless steel mesh for petroleum

Specifications:

Material: Aisi321, 302, 304, 304L, 316 and 316L stainless steel wire, black wire, Al5Cr23, Ni80Cr20, Ni60Cr15 and etc.

Weave: plain dutch, twilled dutch, reverse, five heddle weave.

Characteristics: acid resisting, alkali resisting, heat resisting and wear resisting.

Applications: used for industries of mining, oil, chemical, food, phamaceutical, machine making, scientific research, aviation, etc.

Next Product Inquire Now

Product parameters

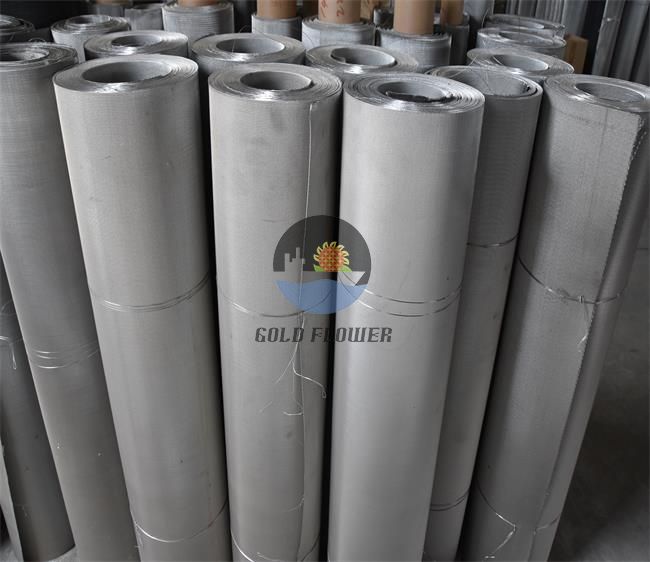

Stainless steel mesh for petroleum

Stainless steel mesh for petroleum is woven by stainless steel wire or black wire, it is used to filter oil and increase material flow resistance, which helps to filter out impurities and improve the mixing or plasticizing effect. The product is widely applied in Neutral chloride environment,oil refining industry,petrochemical and chemical industry,chemical industry transportation pipeline,oil and gas industry,pulp and paper industry,chemical fertilizer industry,urea industry,phosphate fertilizer industry,seawater environment,energy and environment protection industry,light industry and food industry,food and pharmaceutical industry equipment,high strength structure.

With high performance and best price, stainless steel mesh for petroleum is one of GOLDFLOWER's best products, popularly exported to Russia,Ukraine,Italy,France and other countries in the world. Welcome to consult for a free quotation!

Various weaving types of Stainless steel mesh for petroleum:

1. Plain weave:

Each warp wire and each weft wire passes over and under the next adjacent wire.

Plain dutch weave woven wire cloth has two sizes of wire diameter. The weft wires has thinner wire diameter, which is woven tightly together to provide a tight mesh for filtering. The warp wires has coarser wire diameter, which provides strength to the woven wire cloth.

2. Twill dutch weave:

It is the extension of the twill weave. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, which is similar as twill weave. The wire diameter of warp wire is larger than weft wire. The mesh count in the weft direction is greater than the warp direction. Dutch twill weave enables the weft wires to be woven more densely and much smaller aperture sizes can be achieved.

Twill dutch weave is capable of supporting greater loads than the dutch weave. It has finer openings than the twilled weave. It is used for filtering heavy materials.

3. Reverse dutch weave woven wire cloth:

Reverse dutch weave woven wire cloth has finer wire diameter in warp wire and coarser wire diameter in weft wire. and the mesh count in the warp wire is larger than the weft wire.

Applications

Woven wire mesh with various materials and weaving types has a wide range of applications, which the most common is filtration. Detailed applications are in the below.

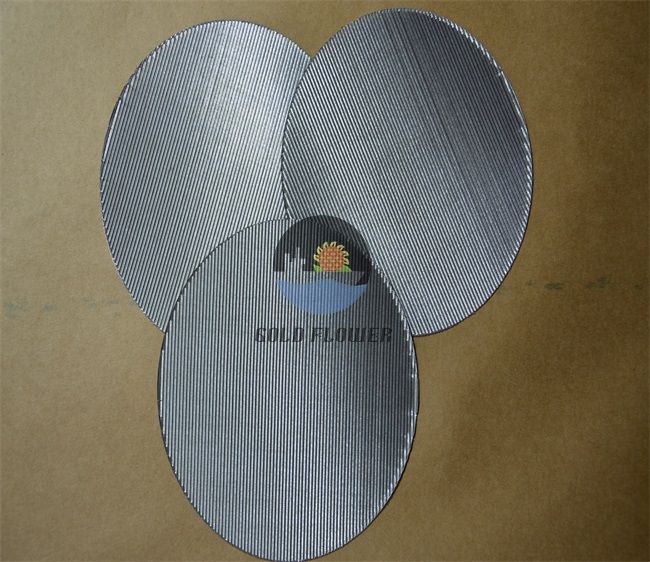

· Industrial filtration. Industrial filtration need accurate and effective filtration. We can supply the filter discs and sintered filter mesh for high efficiency and fine filtering.

· Food filtration. The product has various types for food filtering and sieving, including water, oil and powder.

· Hops and hot breaks filtration. The bazooka screen is mainly used in the kettles, tuns and other containers to filter hops and hot breaks.

Advantages

Stainless steel mesh has several advantages when used in the petroleum industry:

1. Corrosion resistance: Stainless steel is highly resistant to corrosion, making it suitable for use in harsh environments such as oil and gas wells.

2. Durability: Stainless steel is a strong and durable material, making it ideal for use in applications where strength and longevity are important.

3. Chemical resistance: Stainless steel is resistant to many chemicals, making it suitable for use in applications where chemical exposure is likely.

4. Temperature resistance: Stainless steel can withstand high temperatures, making it suitable for use in applications where high temperatures are present, such as in refining and processing of petroleum products.

5. Easy to clean: Stainless steel is easy to clean and maintain, making it an ideal material for use in applications where hygiene is important, such as in the food and beverage industry.

6. Recyclable: Stainless steel is a recyclable material, making it an environmentally friendly option for use in the petroleum industry.

Specification

Plain Dutch Woven Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter mm	Weight kgs/m2	Filtering valueμm
7 x 50	0.70 x 0.54	4.50	315
8 x 60	0.55 x 0.45	3.64	280
12 x 64	0.58 x 0.42	3.80	180
12 x 90	0.45x 0.30	2.60	160
14 x 88	0.50 x 0.33	2.81	150
14 x 100	0.40 x 0.28	2.52	140
18 x 100	0.40 x 0.28	2.61	130
24 x 110	0.35 x 0.25	2.45	115
25 x 140	0.30 x 0.20	1.96	100
30 x 150	0.23 x 0.18	1.61	95
30 x 160	0.23 x 0.18	1.69	90
40 x 200	0.18 x 0.14	1.30	75
45 x 220	0.18 x 0.125	1.22	56
50 x 250	0.14 x 0.11	1.00	60
50 x 280	0.14 x 0.10	0.84	45
60 x 300	0.14 x 0.09	0.80	40
65 x 320	0.12 x 0.085	0.75	36
70 x 350	0.11 x 0.08	0.70	34
70 x 400	0.11 x 0.07	0.68	32
80 x 400	0.12 x 0.07	0.55	35

Twill Dutch Woven Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter mm	Weight kgs/m2	Filtering valueμm μm
20 x 250	0.28 x 0.20	6.55	87
30 x 250	0.25 x 0.20	2.96	70
80 x 700	0.10 x 0.08	1.32	25
80 x 780	0.11 x 0.07	1.19	27
100 x 780	0.10 x 0.07	1.20	25
100 x 900	0.10 x 0.60	1.06	22
100 x 780	0.10 x 0.70	1.21	24
120 x 400	0.10 x 0.06	0.66	40
120 x 600	0.10 x 0.06	0.84	30
120 x 1100	0.08 x 0.05	0.88	18
165 x 800	0.07 x 0.05	0.70	15
165 x 1200	0.07 x 0.04	0.68	19
165 x 1400	0.07 x 0.04	0.76	14
200 x 600	0.06 x 0.045	0.48	20
200 x 900	0.05 x 0.035	0.40	23
200 x 1400	0.07 x 0.04	0.80	10
250 x 2000	0.04 x 0.027	0.46	8
280 x 2200	0.035 x 0.025	0.42	6.3
320 x 2300	0.033 x 0.024	0.41	5
325 x 2300	0.035 x 0.025	0.45	5
400 x 2800	0.025 x 0.020	0.36	3
500 x 3500	0.025 x 0.015	0.30	5

Reverse Dutch Weave Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter Warp x Weft mm	Wire Diameter Warp x Weft inch	Absolute Filter rating μm
63 x 18	0.40 x 0.60	0.0157 x 0.0236	220
107 x 20	0.24 x 0.60	0.0094 x 0.0236	210
130 x 35	0.20 x 0.40	0.0079 x 0.0157	80
132 x 16	0.24 x 0.60	0.0094 x 0.0236	200
132 x 32	0.20 x 0.40	0.0079 x 0.0157	105
140 x 40	0.19 x 0.38	0.0075 x 0.015	100
170 x 40	0.20 x 0.45	0.0079 x 0.0177	130
180 x 120	0.088 x 0.10	0.0035 x 0.004	75
200 x 120	0.08x 0.10	0.0031 x 0.004	70
175 x 40	0.15 x 0.38	0.0079 x 0.0157	70
175 x 50	0.15 x 0.30	0.0059 x 0.012	60
290 x 75	0.09 x 0.20	0.0035 x 0.0079	55
600 x 100	0.04x 0.14	0.0157 x 0.0055	25
615 x 130	0.04 x 0.13	0.0157 x 0.0051	22
615 x 102	0.04x 0.16	0.0157 x 0.0063	42
625 x 133	0.04 x 0.13	0.0157 x 0.0051	17
720 x 150	0.036 x 0.10	0.0014 x 0.0039	17
850 x 155	0.03 x 0.10	0.0012 x 0.004	10

Five-heddle Dutch Weave Wire Cloth
Mesh/Inch Warp x Weft	Wire Diameter mm	Aperture(mm)Warp x Weft	Open Area	Weightkgs/m2
108 x 59	0.160	0.075 x 0.271	20	1.07
110 x 60	0.160	0.071 x 0.263	19	1.09
38 x 38	0.150	0.518 x 0.518	60	0.43

We look forward to working with you!

Are you looking for a durable and reliable material for use in the petroleum industry? Look no further than stainless steel mesh!

Stainless steel mesh is highly resistant to corrosion and chemicals, making it the perfect choice for use in harsh environments such as oil and gas wells. It is also strong and durable, able to withstand high temperatures and pressure. Plus, it is easy to clean and maintain, ensuring that your operations run smoothly and efficiently.

In addition, stainless steel mesh is environmentally friendly, being fully recyclable. This makes it an excellent choice for companies looking to reduce their environmental impact.

Don't settle for less when it comes to the materials you use in your operations. Choose stainless steel mesh for its reliability, durability, and environmental benefits. Contact us today to learn more about how stainless steel mesh can benefit your petroleum operations.
