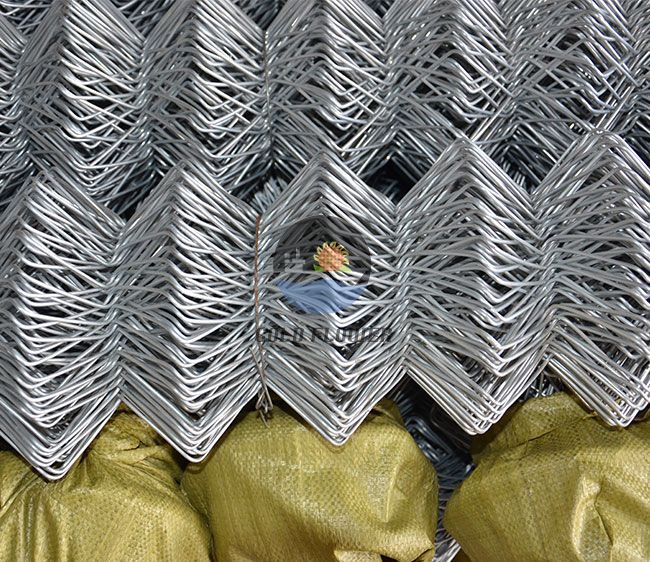

Galvanized Chain Link Fence
Weaving type:
Twist type,twist type on the top and knuckle type on the bottom,knuckle type.
Width of the roll: 1m-5m
Length of the roll: 1m-50m
Application:
1)is used as fencing for high-grade playground and gardens, super highway, railway, airport, tennis sport, residence, etc.
2)to protect and support seawall, slope, road and bridge, reservoir and etc.
3)is used in breeding animals.
Type:
*Galvanized chain link fence
* PVC coated chain link fence
*stainless steel chain link fence
*Vinyl chain link fence
Characteristic:

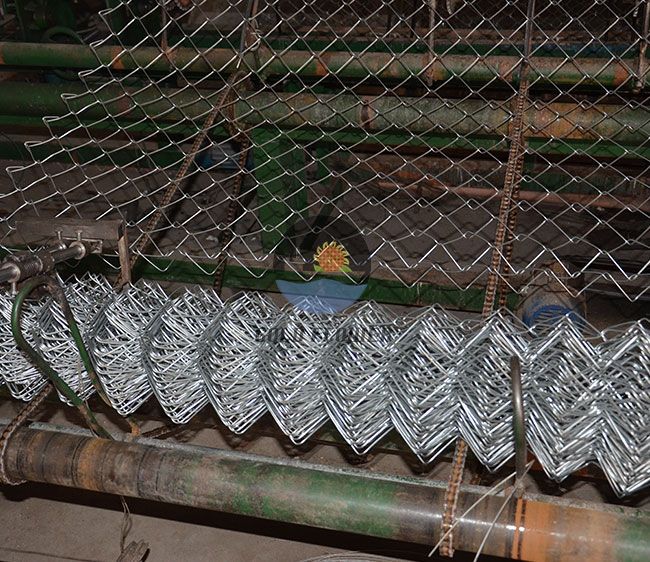

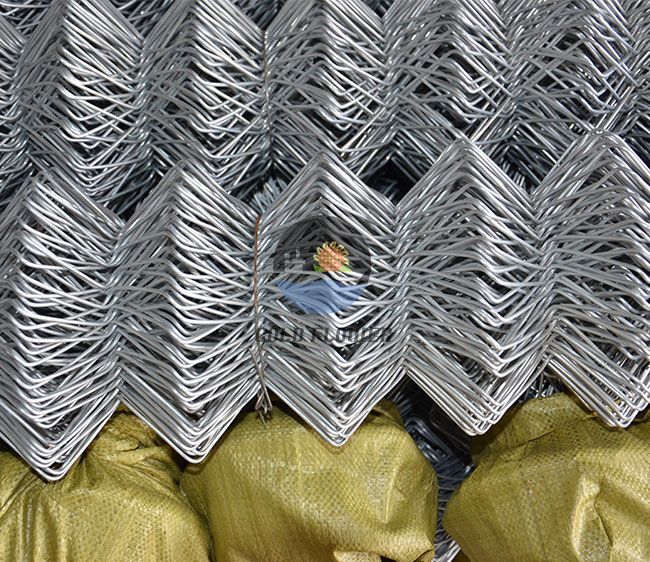

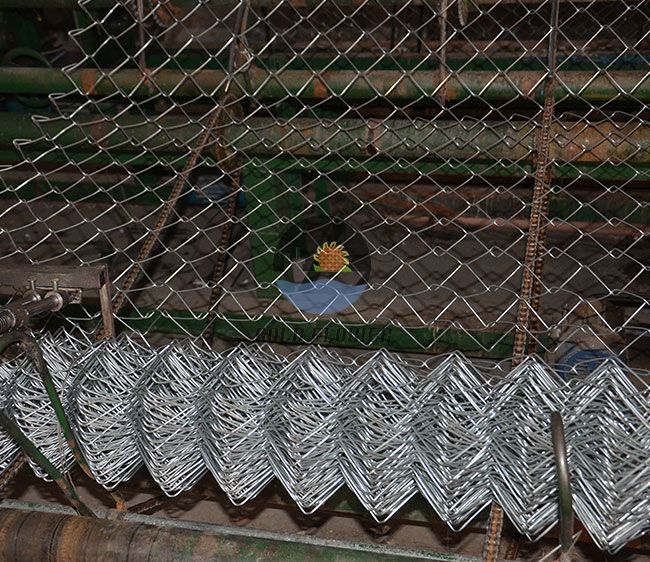

Chain link fence,also named as diamond mesh fence, hurricane fence or cyclone fence, is a type of woven fence usually made of galvanized or PVC coated steel wire. The wires are woven together to form beautiful diamond patterns. It offers a cost-effective solution for residential and commercial applications.
Mesh edge type:
1. Barbed-Barbed: The wire is twisted in to a barbed selvedge at both ends and is abbreviated as(BB)
2. Knuckle-Knukle: The wire is knuckled at both ends and abbreviated as(KK)
3. Knuckle-Barbed: The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as (KB)
| Opening | Wire Gauge | Width | Length |
| 1" | BWG 11 to BWG18 | 0.5-5m | 1.0m-50m |
| 1 1/2" | BWG 8 to BWG16 | 0.5-5m | 1.0m-50m |
| 2" | BWG 8 to BWG16 | 0.5-5m | 1.0m-50m |
| 2 1/2" | BWG 8 to BWG16 | 0.5-5m | 1.0m-50m |
| 2 1/4" | BWG 8 to BWG16 | 0.5-5m | 1.0m-50m |
| 2 3/8" | BWG 8 to BWG16 | 0.5-5m | 1.0m-50m |
| 3" | BWG 8 to BWG16 | 0.5-5m | 1.0m-50m |
| 4" | BWG 8 to BWG16 | 0.5-5m | 1.0m-50m |
